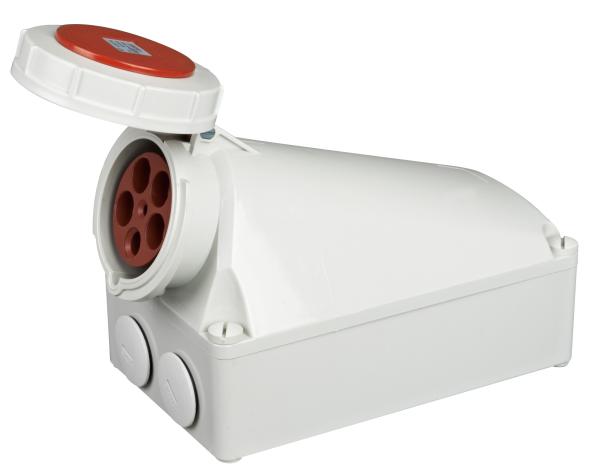

Wall Mounted Bevel Waterproof Plug Socket 5 Pole IP67 Water Protected

Name: Wall Mounted Bevel Waterproof Plug Socket 5 Pole IP67 Water Protected
Brand: HYPER
Price: 1 USD

Brand Name : HYPER

Model Number : 143

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Type : Bevel

Poles : 5pole

Ampere : 125Amps

Rated Voltage : 400Volts

Earth position : 6 H

IP Rating : IP67

Contact Now

5P 125A IP67 Water Protected Wall Mounted Bevel Receptacle with Cover New Generation Industrial Socket part no. 143

Description:

The enclosure has a hinged door for easy installation and maintenance. The plug is connected with a vertical movement. (The outlet is in the bottom of the product)

The 16 – 32A products have knock-outs cable entries. 22mm knock-out upwards and metric threaded M25 downwards. The 63A products have two 32mm knock-outs (one up and one down)

Part no. 143

Technique Parameter:

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	400-440V	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P6h 9h 9h	3P 4P 5P9h 6h 6h	4P3h	3P 4P 5P7h 7h 7h	3P 4P 5P10h 10h 10h	3P 4P 5P2h 2h 2h	PCS/BOX	G/PC
125A	3		138						1	1840
	4			139					1	1970
	5			143					1	2100

Current	Poles	a	b	c	d	e	e1	f	g.	h	M	m*
125A	3	262	160	202	240	140	140	8.1	8	140	50	can use 2PC M40 CABLE GLAND
	4	262	160	202	240	140	140	8.1	8	140	50
	5	262	160	202	240	140	140	8.1	8	140	50
Conductor cross-sectional area(mm²)Min To Max 25-35

Product Dimension:

Wall Mounted Bevel Waterproof Plug Socket 5 Pole IP67 Water Protected
