Red 63a 3 Phase Socket , 400 Volts 4 Pins Industrial Power Socket Outlet

Name: Red 63a 3 Phase Socket 400 Volts 4 Pins Industrial Power Socket Outlet
Brand: HYPER
Price: 1 USD

China Red 63a 3 Phase Socket , 400 Volts 4 Pins Industrial Power Socket Outlet factory

Brand Name : HYPER

Model Number : 1248

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Pins : 4 pins

Current & Voltage : 63 Amps 400 Volts

Protection type : IP44 rain resistant

Earth position : 6 H

Color : Red

Contact : standard

Contact Now

4P 63A IP44 Rain Protected Panel Mounted Red Industrial Socket Straight Receptacle with Cover part no. 1248

Main Features:

1. Safety:
The best material is our basic requirement.
Use the high-end and suitable raw material we think. Each plastic part need pass at least 10 procedures before assembly. Each procedure make the plastic more safety.

2. Durable:
Decades of years later, they are still in good condition.
100% stability, the rate of abnormal for the copper pin less than 1/10,000. After insertion and extraction testing by IEC standard, still shining just like brand new.

3. Simple:
Simplicity, is hidden complexity.
Simply is not simple. The terminal block with big space for wiring. 16A-63A use the soft contact technology with superior mechanical properties and electrical properties. 125A use torsion spring contact to reduce friction force which design can automatically self-cleaning when insert and pull the devices.

Part no. 1248

Technique Parameter:

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
63A	3	1260	1261	1262				5	523
	4	1246	1247	1248	1249			5	562
	5	1250	1251	1252				5	629

Current	Poles	a	b	c	d	e	f	g.	g.1	h	h1	k	i
63A	3	107	100	80	85	77	6	12	2	103	-	55	88
	4	107	100	80	85	77	6	12	2	113	-	55	88
	5	107	100	80	85	77	6	12	2	113	-	55	88
Conductor cross-sectional area(mm²)Min To Max 10-16

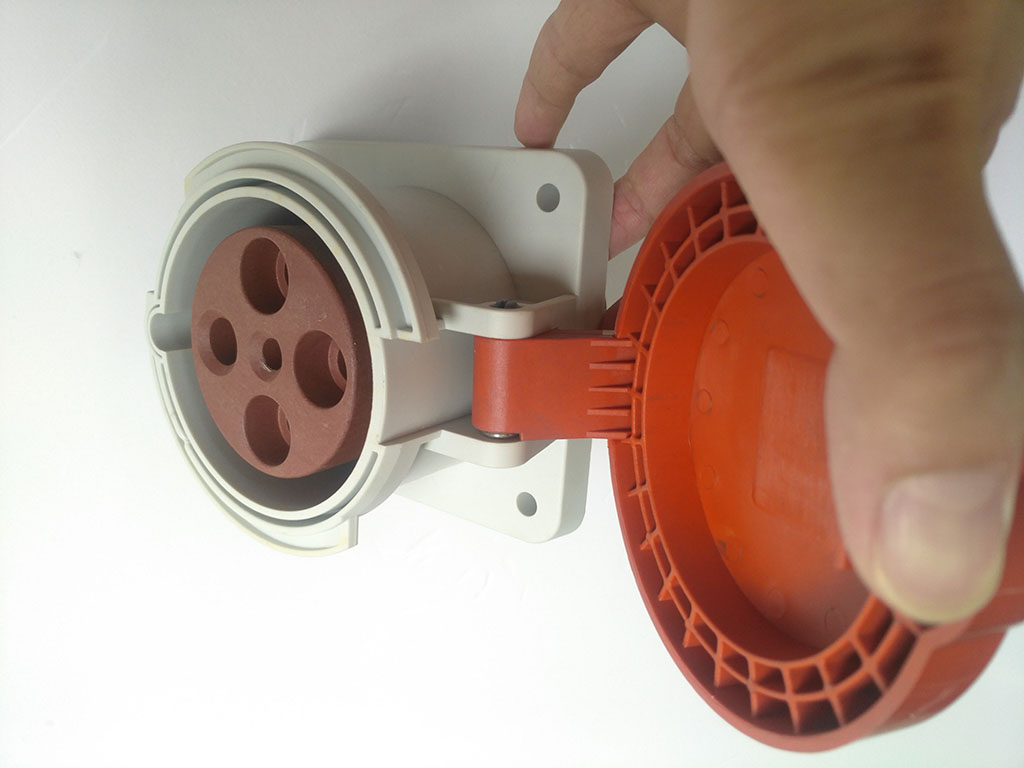

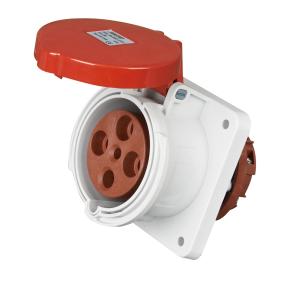

Picture:

Red 63a 3 Phase Socket , 400 Volts 4 Pins Industrial Power Socket Outlet
