Third Generation Screwless Industrial Plug Sockets 50 - 60Hz Frequency

Name: Third Generation Screwless Industrial Plug Sockets 50 60Hz Frequency
Brand: HYPER
Price: 1 USD

China Third Generation Screwless Industrial Plug Sockets 50 - 60Hz Frequency factory

Brand Name : HYPER

Model Number : 1443

Certification : DIN VDE 0623 EN/IEC 60309-2

Place of Origin : China

MOQ : 500pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs / month

Delivery Time : 15 days

Packaging Details : packed by standard paper carton

Name : Industrial plugs

Poles : 4 pin

Current and Voltage : 125 amps 400 volts

Frequency : 50-60Hz

Water Protection : IP67 Watertight

Material : Nylon

Contact Now

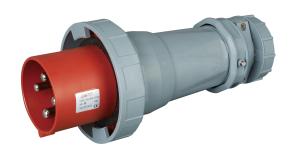

4P 125A IP67 Weather-protected Red Third Generation Industrial Plug Screwless Made In China part no. 1443

Description:

HYPER’s 3rd Generation Industrial Plugs and Sockets of LV 16A, 32A, 63A and 125A plugs and sockets offers improved strength, safety and a wealth of design features that add simplicity and speed to the installation process. Every aspect of the plugs and sockets has been designed with the user in mind.

LV 16A / 32A, 63A and 125A range of panel and surface mounting sockets, mobile sockets and straight plugs

IP44 and IP66 / 67
IK09
Part no. 1443

Technique Parameter:

Current	Poles	110V 50a.60Hz	230V 50a.60Hz	400V 50a.60Hz	400-440V	500V 50a.60Hz	>50-500V 100-300Hz	>50-500V a.300-500Hz	Package Unit	Weight
Current	Poles	3P 4P 5P 4h 4h 4h	3P 4P 5P 6h 9h 9h	3P 4P 5P 9h 6h 6h	4P 3h	3P 4P 5P 7h 7h 7h	3P 4P 5P 10h 10h 10h	3P 4P 5P 2h 2h 2h	PCS/BOX	G/PC
125A	3	3399	3400						5	1195
	4	1441	1442	1443		1444			5	1320
	5	1445	1446	1447		3173			5	1421

Current	Poles	a	b	c	d	e	f	g
125A	3	286	219	57	81.1	131.5	83.3	42.5
	4	286	219	57	81.1	131.5	83.3	42.5
	5	286	219	57	81.1	131.5	83.3	42.5
Conductor cross-sectional area (mm²) Min To Max 25-35

Picture:

Third Generation Screwless Industrial Plug Sockets 50 - 60Hz Frequency
